PVC Window And Door Plastic Profile Production Line With twin conical screw
Description
PVC profile extrusion line is mainly used at PVCdoor, window profile, window sill, ceiling, edge banding,multi-holes cable pipe(four-hole, six-hole, seven-hole, nine-hole and etc.
Features and application
1 PVC profile production line suitable to produce PVC profile, multi-hole cable duct(4-hole, 6-hole,
7-hole, 9-hole option).
2 According to different profile section and mold to choose different conical or parallel twin screw
extruder and provide relative vacuum sizing tank, haul-off, cross direction saw cutter, stacker auxiliary equipments, The capacity of main extruder from 150-450kg/hr for option.
3 Special design for haul-off by particular up and down technology of our company, working stable, reliable and heavy duty force.
4 Vacuum sizing table having particular big eddy flow cooling system for cooling and sizing easy for
high speed extrusion necessary.
5 The action of cross direction saw cutter keeping synchronous with haul-off controlled by import PLC controller, reasonable design, running stable, auto fixed length cutting,
assembled swarf suction device.
6 According to different mold, the vacuum sizing tank could be provided of 4 meter, 6 meter, 8 meter,
11 meter models.
7 Providing parallel twin screw extruder for high speed extrusion
8. This production is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter and stacker.
9. Coordinated with different profile break-section and mould to produce PVC door & window profiles, foamed special shaped materials, decoration plate material, profile and multi-hole wire plastic products, etc
Working flow
Feeder→ Conical Twin-screw Extruder → Mould →Calibration Table → Haul-off → Cutter → Stacker
(Note: Other Auxiliary Machine, such as crusher, mixer, etc. will be provided according to client's requirements)

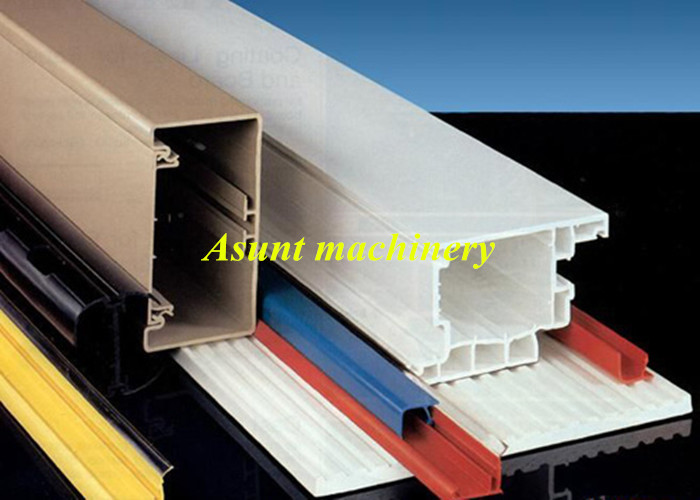

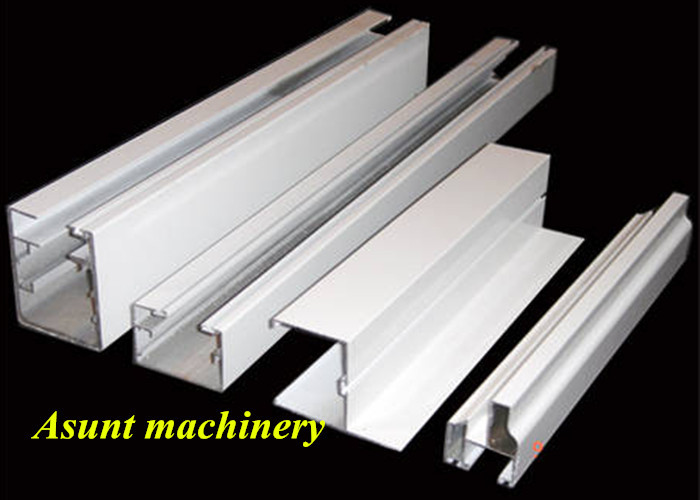

It can produce UPVC/PVC window door profile, PVC ceiling, PVC window sill, PVC door, PVC skirting board and other profiles.
Specifications
| Extruder | SJZS50/105 | SJZS65/132 | SJZS80/156 |
| Model | BLT-SJY180 | BLT-SJY240 | BLT-SJY300 |
| Output(kg/h) | 100-150 | 200-280 | 250-400 |
| Main motor power(kw) | 18.5 | 37 | 55 |
| Cooling water(m3 /h) | 5 | 7 | 7 |
| Dimension(m) | 18×1.2×1.6 | 22×1.5×1.8 | 26×1.6×1.8 |
