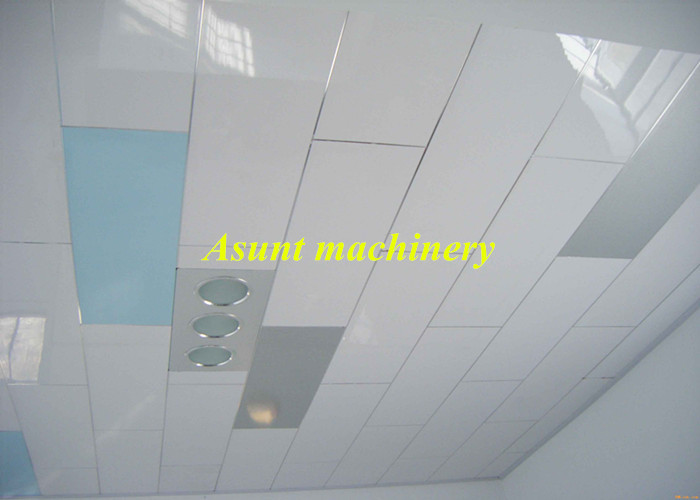

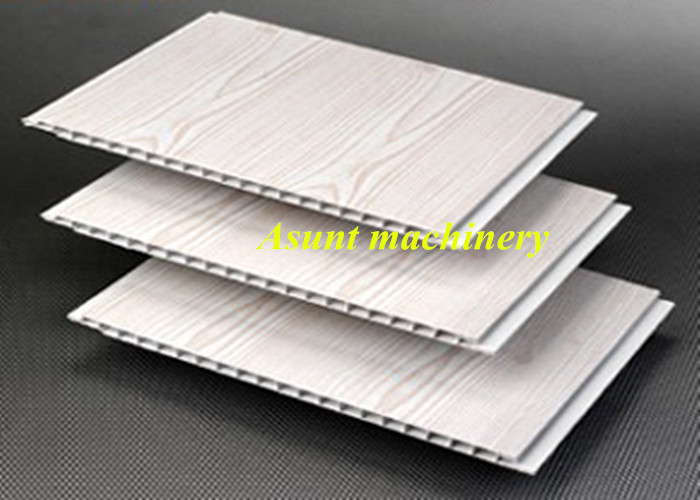

200 - 300mm Width PVC Profile Extrusion Machine For Wall Ceiling Decorating

Qingdao Asunt Machinery co.,Ltd
Contact Now

200 - 300mm Width PVC Profile Extrusion Machine For Wall Ceiling Decorating

  • 1
  • 2
  • 3

Brand Name : Asunt

Model Number : SJ-51

Certification : CE

Place of Origin : QIngdao CHina

MOQ : 1 set

Price : 50000-60000 USD/ set

Supply Ability : 50 sets/ year

Delivery Time : 45-50 working days

Packaging Details : packed by plywood case with shrink film. need one 40 feet container for loading

material : PVC

panel width : 200-300mm

screw diameter : 51mm

motor power : 22kw

capacity : 100-150kg/h

Contact Now

200 - 300mm Width PVC Profile Extrusion Machine For Wall Ceiling Decorating​

PVC Panel Making Machine Description

1. extruder: adopting conical twinscrew extruder, unique designed screw, realizing shorting plasticizing

time, good compounding and excellent plasticization.

2. gearbox: adopting super quality gear box and reducer, with nice outline, stable running,

low noise and long service time.

3. extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel

covers,

wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.

4. screw and barrel: screwcore installing with internal temperature controlling system,

barrel equipped with vacuum degassing system, can get rid of the waste gas from the raw materialwhich

can guarantee super quality of the products.

5. driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output

and various speed.

6. vacuum calibrating tank: with two aluminum racks, to install various extruding dies,

the main body of the tank make of stainless steel, long service time.

7. haul-off machines: 2 laws haul-off machines are provided to

manufacture different width of profiles, haul-off speed governed by the FUJI or ABB inverter.

8. cutting unit: saw cutting, with dust collection system.

9. staking unit: automatic overturning system, can freely fix the length of the profile.

10. controlling system: manual controlling cabinet or SIEMENS PLC touch screen controlling.

The working process of wall panel making machine:

Raw material → screw feeder mixing → screw feeder → double screw extruder → vacuum calibration table → haul-off unit → cutting machine → stacker

Specification

Model AS180 AS240 AS300 As500
Max. width of product(mm) 180 240 300 500
Extruder model SJSZ55/110 SJSZ65/132 SJSZ65/132 SJSZ80/156
Extruder power(kw) 22 30/37 37 55
Cooling water(m3/h) 5 7 7 10
Pressure of compressed air(MPa) 0.6 0.6 0.6 0.6
