Wall Panel PVC Profile Extrusion Process 24 - 34kw With Cutting machine

Name: Wall Panel PVC Profile Extrusion Process 24 34kw With Cutting machine
Brand: Asunt machinery
Price: 50000 USD

Brand Name : Asunt machinery

Model Number : AS-24

Certification : CE

Place of Origin : Qingdao China

MOQ : 1set

Price : US$50000-70000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 25sets per quarter

Delivery Time : 40-60 working days after received your payment

Packaging Details : Packed by plywood case with heat shrink film

Product Name : AS-24 Pvc wall Panel Extruder machinery

Screw design : Double screw

Processing type : Extruding machine

Standard : CE

Material : pvc

Main motor power : 24-34kw

Product type : Pvc profile

Weight : 6T

Contact Now

Wall Panel PVC Profile Extrusion Process 24 - 34kw With Cutting machine

Specifications:

Main Technical Specifications

TYPE	AS Model 120 Small Profile	AS Model 240 Ceneral-Purpose	AS Model 240 Quasi-High Speed	AS Model 240A High Speed
Max.Vacuum
Quantity of Vacuum Concent	-0.096	-0.096	-0.096	-0.096
Vold Mod Length of setting Table/mm	3000	4000	4000/5000	6000/8000
max Drawing Force	20	30	40	40
max Drawing Speed	8	3	5	5
Crawler Width	200	240	240	240
Water Consumption	2.5	4	5	6
Gas Consumption	8	10	12	15
Total Power.KW	24.3	27	33.5	34.7
Appearance Dimension m×m×m	15100×860×1400	13500×1045 ×1760	16385×1465×2127 17135×1465×2127	18750×1465 ×2130 19410×1645 ×2130

Description:

Introduction

1. Purpose PVC decorative panel

2. Material PVC powder

3. Product width 500mm

4. Product thickness 10mm

5. Output 80-160kg/h

6. Production speed 0.5-3m/min

The composition of the line:

1. Feeding machine

2. SJSZ-65/132 double screw extruder

3. PLC control system

4. Mould

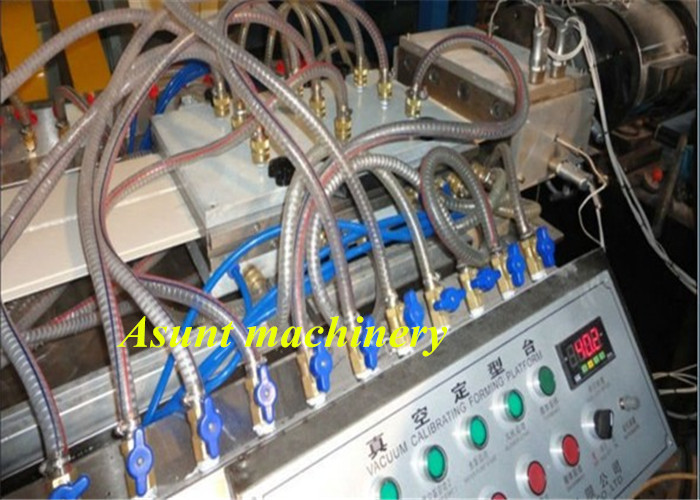

5. SDT-6000 calibrating platform

6. Haul-off machine

7. Cutting machine

8. Stacker

Applications:

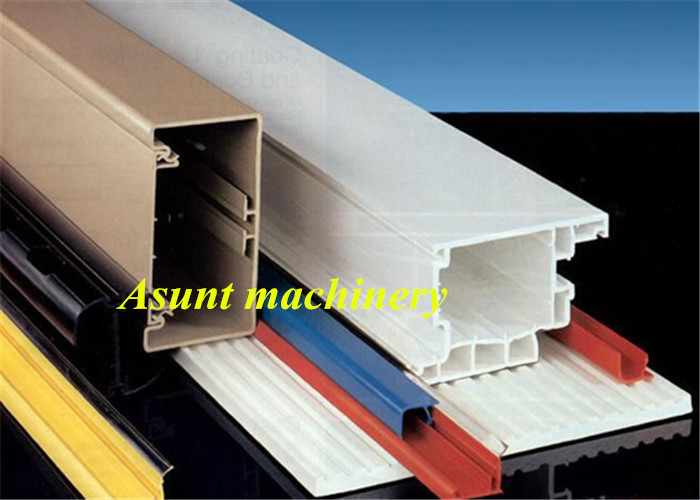

This production line is mainly used to produce PVC WPC profile, such as Ceiling, Deck, Floor, Cornice,

Plank, Windows, Door frame and board and etc

Competitive Advantage:

High capacity
2.Long life
3.High speed extrusion
4.Low energy consumption

AS-24 PVC wall panel production line

Wall Panel PVC Profile Extrusion Process 24 - 34kw With Cutting machine

Product Tags:

pvc profile extrusion process

plastic profile extrusion line

Wall Panel PVC Profile Extrusion Process 24 - 34kw With Cutting machine Images
