Single Screw Extruder Plastic Pipe Making Machine PP PE Lollipop Stick Drinking Straw Production Line

PP PE Drinking Straw and Cotton Stick Making Machine Single Screw Full Automatic Production Line

Specifications:

Description:

1. Series drinking straw extrusion line is a set of drinking straw production line,Using polypropylene(pp)as raw materials ,with the use of master batch after malting extrusion,shaping,cooling ,pulling cutting,then

produce coloress,color,two-color and three-color drinking straw.

1.Single Screw Extruder

Screw diameter: 50mm

Power: 7.5kw

Heating method: electric heating

2. vacuum and water Cooling and shaping machine

Material: stainless steel

Length: 3500mm( can be ordered design)

Cooling method: water cooling

Drying method: air-sweeping type

3.Take-up and cutting machine
Take-up roller: PU modified rubber

Take-up Power: 0.75kw

Cutting method: rotary cutting

Cutting power: 0.75kw

Applications:

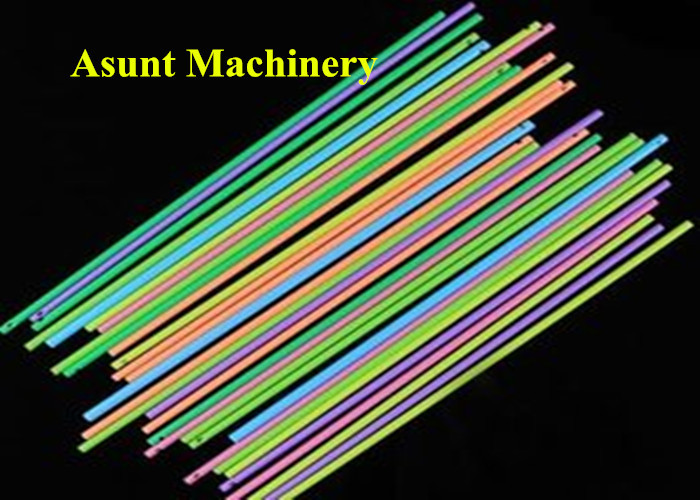

1. Food industry:PP PE pipe, drinking straws,lollipop sticks,coffee stirring stick etc.The other industry:

bullpens refill,cotton swab sticks, brake pipe and some small,diameter pipes.

Competitive Advantage:

1. PP Straw making Machine is ideal for small production. The system is also suitable for extruding straws,

refluxes and most small diameter tubing and a wide range of industrial applications.

2. This machine is a professional equipment of making different kinds of drinking straws.The machine can

produce different specifications of tubes by only changing the mould.

3.This single color drinking straw extruding production includes extruder, vacuum and water Cooling and shaping machine, take-up and cutting machine.

4. Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.

Reasonable structure,high automation level,simple and stable operation,high efficiency.

ppr pipe making machine

plastic pipe extrusion machine

Single Screw Extruder Plastic Pipe Making Machine PP PE Lollipop Stick Drinking Straw Production Line Images
