Plastic PP PE Drinking Straw Making Machines Fully Automatic PP PE Drinking Straw Production Line

Qingdao Asunt Machinery co.,Ltd
Contact Now

Plastic PP PE Drinking Straw Making Machines Fully Automatic PP PE Drinking Straw Production Line

Brand Name : Asunt machinery

Model Number : AS-J0066207

Certification : CE

Place of Origin : Qingdao China

MOQ : 1 set

Price : US$7000-17000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20sets per quarter

Delivery Time : 20-25 working days after received your payment

Packaging Details : packed by plywood case with shrink film, need one 40 feet container for loading

Product Name : High Quality Plastic PP PE Pipe Extruder Machinery

power : 25KW

Screw design : three screw

Dimension : 7*1.2*1.2M

material : PE PP

weight : 8t

Capacity : 80-150kg/h

Contact Now

Plastic PP PE Drinking Straw Making Machines Fully Automatic PP PE Drinking Straw Production Line

Specifications:

Colour Single Two Three or more
Diameter of screw: 50mm 50mm+1x25mm 50mm+2x25mm

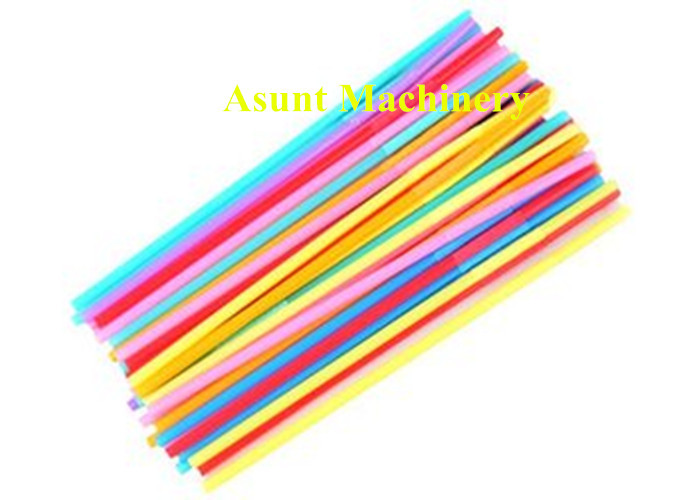

Specification of straw Diameter.:φ2- φ 14mm
Length tolerance:± 0.1 -1mm
Thickness:0.05-1mm
Capacity 30000-60000pcs/h

Introduction of the machines

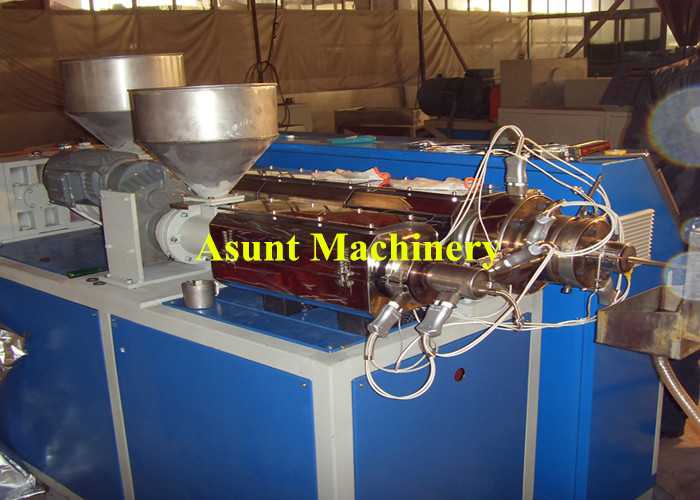

The machine composed of plastic extruder, cooling unit, hual-off device .etc .It can produce different specifications of straw such as single color, double color, three color, spiral stripes and straight stripes.
The product supplied by the machine used in a wide range in industrial filed. For example: Drinking straw in food industry, straws in medical area .etc

Description:

a. The primary machine barrel and screw are adopted with high quality material of 38CrMoAlA and nitrogen treatment

b. Series drinking straw extrusion line is a set of drinking straw production line,Using polypropylene(pp)

as raw materials ,with the use of master batch after malting extrusion,shaping,cooling ,pulling cutting,then

produce coloress,Colors: single color, two colors, three colors, four colors or five colors,Stripe: spiral stripes, straight stripes.

c. This production line is composed of extruder,mould,cooling device traction and cutting device,electric

control part and so on.. All the direct contact parts made from stainless steel.


d. The cutting unit adopted the big plate cutter and with automatic gathering system

Applications:

1. Food industry:PP PE pipe, drinking straws,lollipop sticks,coffee stirring stick etc.

2. ball-pen,core,watercolor pen core,toy tube,drop tube and other small industrial irregular shape pipes.

3. The easy to change, twodie system provides a straw diameter range from 6mm to 11mm with easy

adjustment of thickness.The other industry:bullpens refill,cotton swab sticks, brake pipe and some small,diameter pipes.

Competitive Advantage:

1. The new design makes it much easy to plasticize and increase output. It is an economical perfect machine for drinking straws.

2. This machine is a professional equipment of making different kinds of drinking straws.The machine can

produce different specifications of tubes by only changing the mould.

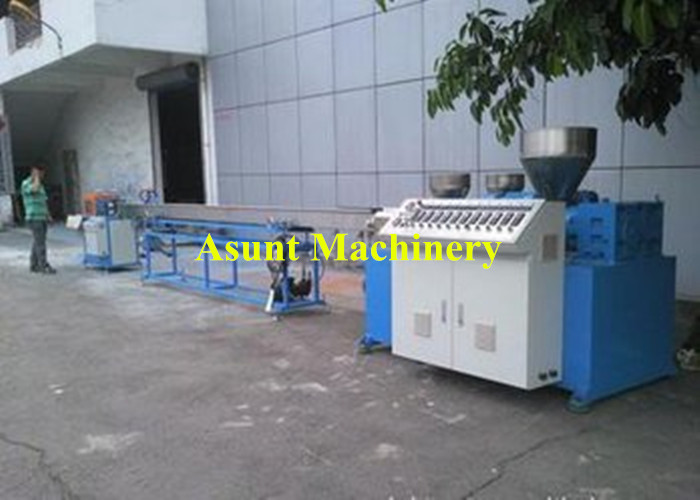

3.Machine is composed of extruder, die, vacuum calibration,cooling unit, haul-off and rotary cutter and all the machines controls base with the control elements with easy operation.

4. We mainly export:

1) China Mainland
2) Middle East (Have agent in Jordan,Egypt,Morocco,Iraq,Kuwait,Oman.)
3) East Africa (Have agent in Kenya and Uganda)
4 ) South America ( Have agent in Argentina ,Mexico and Brazil)

5. Our machine are approved with CE Certification,with longer using life, high precision and stable

performance.
