PP Strap Extrusion Line /Strapping Band Making Machine, PPStrapping Band Extrusion Machine
PP packing straps extrusion machine features:
1. High and stable production efficiency
2. Good quality machine with competitive price
3. can equip Siemens PLC control, or designed according to customer's requirements
PP packing straps extrusion/production machine:
Materials: PP material, or 100% recycling pp flakes and granules.
Application: Used to produce the PP strap packing band. PP packing belt has features of environment-friendship, good strength and toughness, long using life. So it is widely used in the carton packing field.
Specifications
| Extruder | SJ-65/28 | SJ-80/28 | SJ-90/28 |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 80-120m/min,adjustable |
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm |
| Installed Capacity | About 40kw | about 60kw | about80kw |
| Line Dimension | 26m×2m×2.2m (L×W×H) | 26m×3m×3m (L×W×H) | 26m×5m×3.5m (L×W×H) |
Application:
PET PP PE strap , known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline,have been widely used in the steel industry,chemical fiber industry,alluminum ingots,paper,brick kiln industry,screw industry,tobacco industry,electronics,texriles and wood,etc;is replaced by a new high-strength steel strapping,is the world's most widely used for steel products.
complete line :
Used for produce the PP strap packing band.
The machine details:
1, SJ-65/30Single Screw Extruder
2, Die head (make two/three straps at one time)
3. Cooling trough/tank
4, The first hauling off machine 1set
5, Thermal oven 1set
6, The second hauling off machine 1set
7, Embossing machine 1set
8. Tension
9. forming device
10, cooling tank
Features of PP strap making machine/extrusion machine/PP strapping band production line:
a. Single screw extruder with double mold
b. Low power consumption
c. Produce stable quality strap with good straightness ,equal width and thickness control
d.Exceptionally strong adhesion,tensile, light weight corrosion resistance, aesthetic appearance,high-grade
e. Can use recycled pp lastic or pp virgin material
f. Automatic embossing synchronize and ink printing clear
installation and training:
after machine shipped to customer's factory, we will send technicains for installation and training for about 15 days.
customers are resposable for accomodation and round way tickest for technicians , and also 75USD for each person each day.
after installation, our company will supply technical surpport during machine using life.

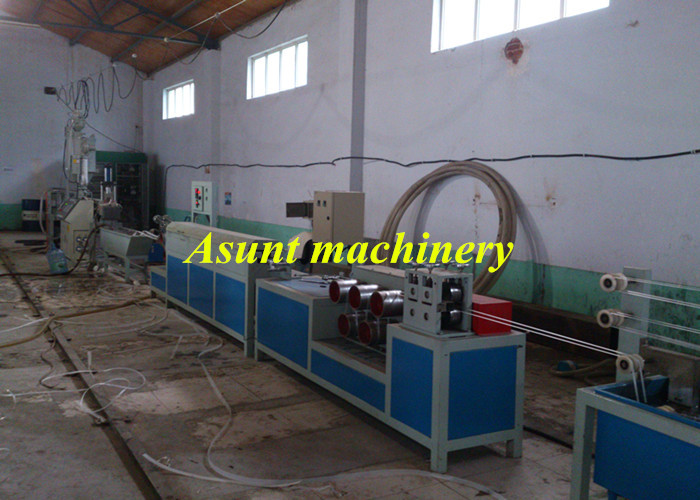

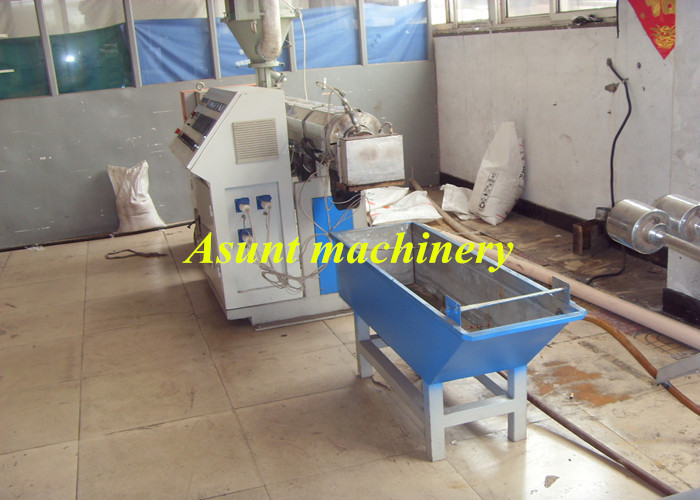

machine pictures
|
|
PP Strap Extrusion Line /Strapping Band Making Machine, PPStrapping Band Extrusion Machine Images
|
