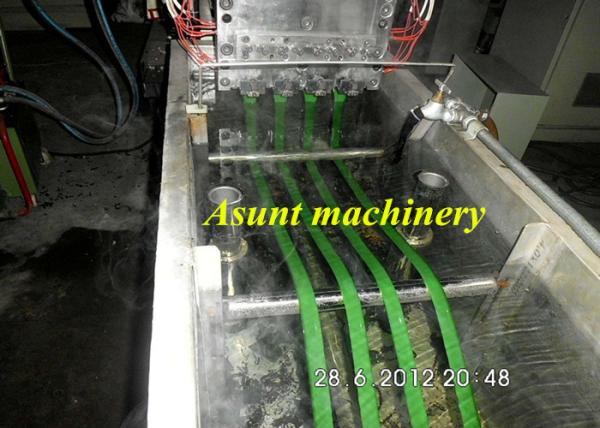

PET Packing Strap Band Extrusion Production Line By Use 100 % PET Flakes
Description
Our PET strap production line, which has broken through the traditional craft route,
takes 100% bottle slices for raw materials without any other complement, adopts
the advance technology to produce all kinds of polyester straps directly in
a economical cost.
Features:
1) PET raw materials do not need dry and water treatment separately. There is
an automatic circulation on preheating and drying, which saves lots of
equipment investment and reduces the production cost by 30%
2) Uses the recycling bottle slices as raw materials directly, which reduces the
course of raw material-making
3) With the multi-purpose machine, it can produce PET straps in different
specifications directly and doesn't need to change the mould head
4) The products has the same transparency as made from new polyester slices,
but the tensile strength and shock resistance are stronger
5) Low energy consumption, high production capability
6) Easy to operate, saves manpower: 2 people for one production line on
Advantages
1. Single screw or double screw technique for option depending on the requirement
2. 100 percentage recycled flakes can be used
3. Even plasticization and stable extrusion with PC automatic control for the full line
4. The dosing pump ensures continuous and stable production
5. The filter of double columns with four nworking positions can get rid of impurity effectively
6. Single strap or double strap for option
Technical parameter
|
Model
|
Output (kg/h)
|
Specification
|
Power Consumption
|
|
MG50
|
50~60
|
9~20
|
45~50 KW
|
|
MG60
|
50~60
|
9 11 13 16
|
45~50 KW
|
|
MG90
|
80~90
|
9~25
|
55~60 KW
|
|
MG120
|
110~120
|
11 13 16 19
|
55~60 KW
|
|
MG160
|
120~160
|
19 16 12.7 9
|
70~90 KW
|
