Brand Name : Asunt
Model Number : AS-1000
Certification : CE
Place of Origin : Qingdao Port
MOQ : 1 set
Price : 45000-65000 USD/ set
Supply Ability : 5sets/month
Delivery Time : 30-40 working days
Packaging Details : packed byplywood case with shrinl film. need one 40 feet container for loading
suitable material : PE
film width : 1000mm
film thickness : 0.01-0.1mm
screw diameter : 65mm
capacity : 50-100kg/h
PE Stretch Film Making Machine For Packing Food , Cast Film Extrusion Machine
Description
Stretch film machine mainly use LLDPE,LDPE or recycled LLDPE material to produce one side sticky or 2 sides sticky stretch film,cling film,cast stretch film etc.The width from 20mm to 2000mm, single layer to 2 layers, 3 layers, 5layers and so on.
This Unit is based on our long time manufacturing experience and customer's actual operate, Combine with Italy and Amercian high-tech to produce high plasticity, easy to operate, long life and power saving machine.This machine is fit for making stretch film, cling film and protecting film.
Features of Machine
Whole touch screen& PLC control system, high line speed, low power consumption, high capacity, fully automatic die and thickness control system, robot operation, fully automatic paper core loading, finished roll change and unloading.
Characteristics of product
1. Its better tensile strength, puncture resistance and impact strength
2. Its good shrinking memory and self-adhesion can make goods integrity to prevent goods from loosening adn collapsing during transportation and being polluted by dust
3. Its good transparency and extensibility can make the package beautiful, economical and practical.
Main applications of product
The film can be widely used in wrapping of palletized goods. It's a good substitute for hot shrink packaging film in transportation.
Specification
tem | Double-side sticky | Single-side sticky | |||||
Model | CRM45A | CRM65A | CRM80A | CRM45B | CRM65B | CRM80B | |
Screw dia. | mm | Ø45 | Ø65 | Ø80 | Ø45/Ø45 | Ø65/Ø65 | Ø80/Ø55 |
L/D ratio | L/D | 33:1 | 33:1 | 30:1 | 33:1 | 33:1 | 30:1 |
Motor power of extruder | KW | 7.5 | 22 | 37 | 7.5×2 | 22×2 | 37/15 |
Effective width of die | mm | 700 | 1250 | 1250 | 700 | 1250 | 1250 |
Width of product (optional) | mm | 500, 600 | 1000 | 1000 | 500, 600 | 1000 | 1000 |
Length of roller | mm | 700 | 1250 | 1250 | 700 | 1250 | 1250 |
Draw-off power of roller | KW | 2.2 | 4 | 8 | 2.2 | 4 | 8 |
Winding power of waste edge | KW | 0.75 | 1.5 | 2.2 | 0.75 | 1.5 | 2.2 |
Winding dia. | mm | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
Dimensions (L×W×H)(approx) | m | 8×2.4×2.5 | 9×5×2.8 | 10×3×4 | 8×2.4×2.5 | 9×5×2.8 | 10×3×4 |
![]() |

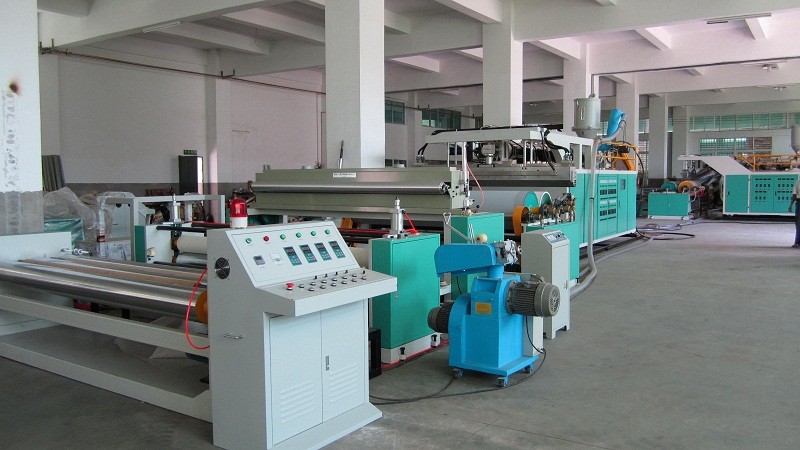

PE Stretch Film Making Machine For Packing Food , Cast Film Extrusion Machine Images |
