50-160mm PVC Waste water Drain / drinking water supply Plastic Pipe Making Machine with price
Specifications:
| Certification | CE |
| Capacity | 80-200kg/h |
| Total Power | 45kw-230kw |
| Processing Type | Extruding Machine |
| Product Type | Plastic Pipe |
| Pipe Diameter | 16-630mm |
| line speed | 1.2-12m/min |
Description:
1. The noise-reducing pipe is our new product for building drainage, using nanotechnology. light weight, easy assembly.
2. The extruder and the extractor adopt the imported AC frequency control device.The vacuum pump and
the electric vehicle motor employ the superior goods

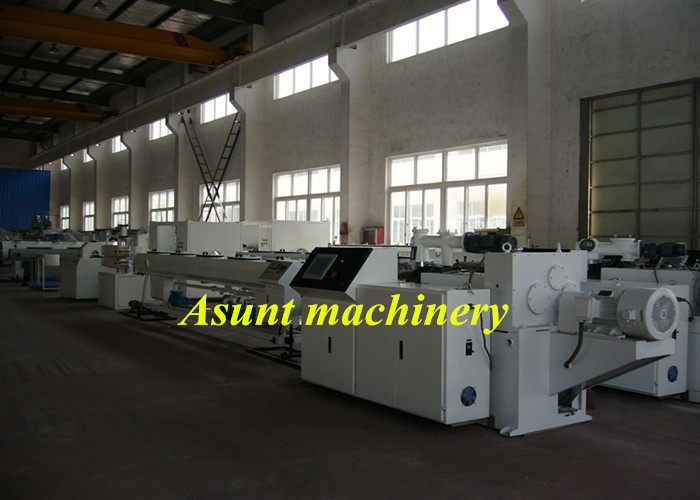

3. This machine group consists mainly of twin conical (parallel) screw extruder, vacuum calibration tank, haul-off, cutter, tilter...etc.
4. The screw extruder and haul-off unit have applied imported A/C inverter, the barrel and screw are under hard chrome plated an bimetallic treatment, effectively reduce the abrasion caused by the CaCo3 and other additives.
5. Our company may equipped the special device for the manufacture of the inner wall spiral coil and core layer blister according to the client’s requirement
6. The screw barrel adopts special designed wind cooling system, which makes repair quite easy.
Applications:
1. PVC mainy used for the production of agricultural drains,building drains,gas pipeline and cable laying
pipes, etc..
2.. Discharge of industrial waste water
Competitive Advantage:
1. The special designed screw, gear box and mould make the line reliable and easy operation
2. Extruder machinery reliable performance and high production efficiency
3. Tubeing and fitting can use adhesive,construction simple,easy to handing.
4. High speed extrusion and Low energy consumption
5. PVC Production Lne can solve the problems of high temperature melting,high viscosity,and easy-decomposition.
6. Optimal hardenss and tensile,high safety coeffcient.
7. Rigid outer layer protects middle structure with high impact resistance.
8. Our extrusion line is composed of extrusion system,calibrating and cooling system,Haul-off and cutting system,belling machine,etc
Product Tags:
|
|
50-160mm Waste Water Drain PVC Pipe Making Machine Double Screw Extruder Images
|
