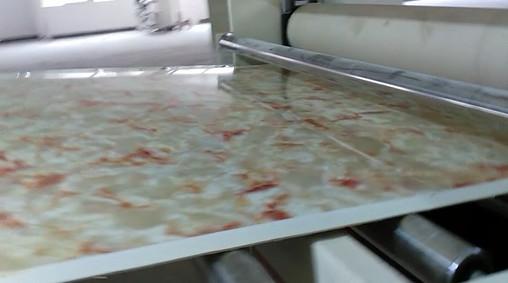

600-1000mm Width Plastic PVC imitation marble sheet production line
Applications:
Mainly used in electronics, folding boxes, plastic, musical instruments, building materials, tools, crafts, signage, packaging and many other industries.
Features:
- Extruder: Special design screw, precise temperature control system, ensures good plasticization and high yield stability extrusion.
- T-die with special two throttle design enables more precise adjustment of sheet thickness.
- The temperature control accuracy reaches to ± 1 ° C, can precisely control plasticizing process and sheet thickness and smooth.
- Three-roller calendaring machine is designed in different type according to the characteristics of plastic materials, product width, thickness and transparency requirement, includes level three-roller, inclined roller or vertical three-roller, three-roller temperature is independent controlled, the gap between rollers can control freely, to ensure the calendar effect .
- The cutter is length set cutting of precise cutting quantity. The Winder motor device with high torque, can adjust the retractor tension to make sheet smooth
6. adopts FSJSZ serials of conical twin screw extruder with imported inverter,which provides wide adjusting range and precise temperature control.
7.The down stream equipment includes vacuum calibrator and cooling unit, haul off unit, cutting machine and stacker.
8. The calibration unit is equipped with strong forced cooling system so that it can provide perfect calibration effect.
9.Screw designed based on mixing and plasticization function;
10.Coat hanger type die with two throttle design enable to regulate the sheet thickness accurately;
±1°C temperature control make the plasticizing process and sheet thickness control more accurate;
Horizontal, vertical or 45°tilt type, three-roller calendars
11.Sheet thickness shall be regulated by screw and pressing roller;
Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness;
12.Winder with big torque motor, and its speed and tension force adjustable;
13.Automatic metering device can pre-set the length of products.
specification
|
Parameter
|
SZ80/156
PVC(Mode)
|
SZ80/156 PVC(Mode)
|
SY3L450-1250(Mode)
|
SY5T560-1650(Mode)
|
|
Diameter of screw(mm)
|
80/156
|
80/156
|
125/120
|
150/150
|
|
Compression ratio
|
1:2.2
|
1:2.2
|
120/7:1
|
150/7:1
|
|
Width of flake board(mm)
|
800~1500
|
800~1500
|
600~1000
|
600~1000
|
|
Thickness of flake board(mm)
|
3~20
|
0.3~1.5
|
0.06~1
|
0.04~0.08
|
|
The max capacity(kg/h)
|
300~400
|
soft-280 hard-300
|
soft-300 hard-360
|
soft-320 hard-400
|
|
Power of the whole machine(KW)
|
220
|
200
|
260
|
370
|
|
Outlook Size(m)(L×W×H)
|
25×3×2.7
|
15×3×2.7
|
21×3.8×3
|
33×3.8×3
|
Competitive Advantage:
1. Clean, bright, equal thickness sheet produced
2. Use advanced extrusion technology.
3. High output and high speed production
4. Adopt Siemens PLC control system
5. Convenient operation and excellent function
6. Good forming effect, equal thickness of sheet and same running speed
