Nylon PA6 monofilament extrusion machine 100-200pcs spindles for fishing line and net
Application

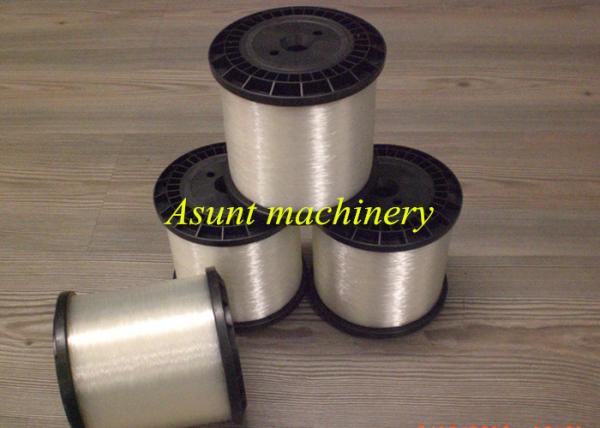

The line is to produce the PA (polyamide) monofilament for the application in hook and loop tape, zipper thread and fishing line, with the following specifications:
Raw Material : PA
Diameter of monofilament: 0.10-0.30mm
Production Capacity: 40-120kg/hour (by different models)
1. machine with automatic-control system, gear drive, auto-loader etc
2. Automatic controlling system, the entire production line adopts new control system, delta frequency and advanced PLC, more stable and high efficiency.
3. Single screw extruder: Screw adopts Nitriding process , could bear high temperature ,more durabile, and good plasticizing quality. Machine with pressure sensor and metering pump to control the f pressure and the flow. It’s convenient to change different spinneret size to make different dia of yarn.
4. cooling system: steady temperature ensure the twine soft and shiny with good feature.
5. NO 1 and NO 2 stretching: ss material is to make the yarn good stretching, steady speed
6.heating system: half of heating tube will stop after temperature getting to the settled data, this could reduce the cost , low consumption.
7.winder has separate motor to control each winding head, for monofilament, there exist several kinds of winding type.
technical parameters
|
Screw Diameter mm
|
65
|
80
|
90
|
|
Screw Rotate Speed r/min
|
30-70
|
30-70
|
30-70
|
|
L/D
|
30:1
|
33:1
|
33:1
|
|
Total Power kw
|
40
|
60
|
78
|
|
Productivity kg/h
|
40-80
|
60-120
|
80-180
|
|
Dimension m
|
17.5×2×2
|
21.5×2.1×2
|
26×2.2×2
|
Features:
1. Single screw, longer life of screw &barrel
2. AC Inverter & Motor which synchronizes the entire extruder
3. PP&LD can be processed due to its special screw design
4. Latest technology used to force the melt into the die very effectively
Full Service
1) Pre-sale service:
To provide market research information and consultation
To provide all kinds of convenience and market service
To help customers make project planning and systematic analysis
To maximize customer's satisfaction
To achieve the mutual benefits of our customers and our company
2) After-sale service:
To install products and test products for customers
To provide the formulas and technologies of relevant products and the information of chemical materials manufactories
To provide technical direction according to customers' requirements
To provide technical training for clients' employees
To be responsible for maintenance service, door-to-door service under necessary circumstance
