PP PE Master Batch Making Machine / Extruder Machinery With Two Screw

Name: PP PE Master Batch Making Machine Extruder Machinery With Two Screw
Brand: Asunt Machinery
Price: 25000 USD

Quality PP PE Master Batch Making Machine / Extruder Machinery With Two Screw wholesale

Brand Name : Asunt Machinery

Model Number : AS-Jo2211

Certification : CE

Place of Origin : Qingdao China

MOQ : 1set

Price : 25000USD-70000USD

Payment Terms : T/T , Western Union

Supply Ability : 1 Set

Delivery Time : 20-30 working days after received your payment

Packaging Details : This machine need ply wood case , heat shrink film and 20 feet container For loading

Material : PP PE

Name : PP PE Masterbatch Extruder Machinery

Capacirt : 100-300kg/h

Scwer diameter : 65mm

Automatic Grade : Automatic

Color : any color as your requirement

Type : Granulating Production Line

Screw Design : Twin screw

Power(W : 22KW

Weight : 10Tons

Contact Now

PP PE Master Batch Making Machine / Extruder Machinery With Two Screw

Name	Specification	Remarks
Pre-mixing	High speed mixer	to mixing PP/PE + Caco3
Loading	Screw Loader	to Loading mixer
Twin screw extruder	TSK51; Capacity: 100-300kg/h;	to kneading and extrusion
Twin screw extruder	L/D= 48:1; Materials: W6Mo5Cr4V2;	to kneading and extrusion
Pelletizing line	Air cooling hot face pelletizing line	to cooling and cutting granules

Product Description

A. Plastic masterbatch production line of GSJ series extruders consisted of two stage components. The first stage is GSJ co-rotating twin-screw extruder, the second stage is GSJ single screw extruder. This machine first of all to realize material better compounding and shearing by twin-screw, then the single screw fulfills the task of extruding and granulating.

B. The scientific and advanced structure of our plastic masterbatch production line can avoid material decomposition phenomena due to overheating. To combines the advantage of twin-screw and single screw together and complementation, likewise, propitious to every craft distribution and optimize so that making higher efficient and production capacity.

PP PE Pelletizing System

Plastic masterbatch production line can be followed with four main kinds of pelletizing
system:
1. Water /fan cooling strand pelletizing system
2. Water ring hot- face cutting system under-water pellet system
3, Eccentric water-spray pelletizing system
This time we mainly introduce plastic masterbatch production line with eccentric water-spray pelletizing system.
This type of configuration for machines are mainly for PE cross linking cable material making

PP PE Master Batch Making Machine / Extruder Machinery With Two Screw

Product Tags:

plastic recycling equipment

plastic pelletizing machine

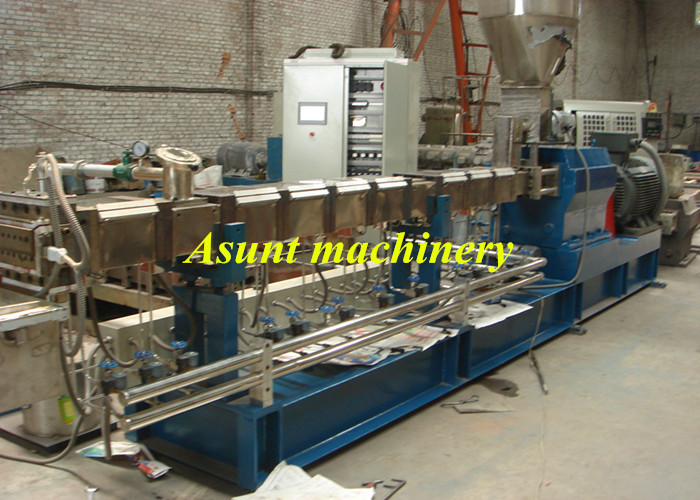

PP PE Master Batch Making Machine / Extruder Machinery With Two Screw Images
