High Output Plastic Sheet Extrusion Line , Plastic Sheet Extrusion Machine

High Output Plastic Sheet Extrusion Line , Plastic Sheet Extrusion Machine

I:GENERAL INTRODUCTION

1) Mainly used to produce PP, PS(HIPS),PE,PET plastic sheets for beverage mugs, ice cream cups, jelly cups and other packing containers

2)Sheet width: 800mm

3) Sheet thickness is 0.3-2.0mm

4)24 HOURS production capacity is 4000kg

5) Output: 170kg/hour

6) Total start power: 120kw

7)average consumption :80kw

8) Overall dimensions: 13m x 2.5m x 2 m

9)weight of machine 5(ton)

II:MAIN PART OF SHEET EXTRUDER MACHINE

1)gearbox model: hardface model 250 ,speed rato:14:1

(made in china xiaoshan)

2) Screw diameter: 100mm,L/D ration 32:1(zhoushan)

3)Screw rotating speed: 0—90rpm

4)Screw material: 38CrMOALA

5)Screw heat treatment Nitriding hardness≥HV85,depth:0.5—0.7mm

6)Barrel heat treatment Nitriding hardness≥HV950,

depth: 0.5—0.7mm

7) Main motor power: 55kw(made in china)

8) screw heating power:6area x7kw/area=42kw

9)Tee joint heating and net change device heating power is :2area x3power/area=6kw

10) T-die Runner: clothes-hanger pattern

11)t-die width :800mm,heating power=15kw( 5area x3 kw/area=15kw)

12)hydraulic net change device ,hydraulic station motor:2.2kw

III :THREE ROLLER PART

1)three roller size :350x770mm(made in china )

2) Three roller material: NO.45

seamless steel tube, inner surface of roller have water circulation system (made in china)

3)Three roller motor:5.5kw

4)Three roller reduction box:wpa-120 speed ratio :120-A

4)Three roller model :45degree arrange(the same as above picture)

5) Three rollers bounce: ≤0.011mm

6) Three rollers surface roughness≤Ra 0.025

7) Three rollers transmission: one motor control three roller simultaneous transmission

8) Three rollers linear speed: 20 m/min

IV: (Traction) part

1)Rubber roller: 180×770mm (place of origin)

2)Traction roller: 180×770mm (made in our factory)

3)rewinding sheet roller: 2 pieces (industry standard)

4)Lateral sheet rewinding device (two sides): 1 set

5)Cutter: 1 group

6)Motor: 3KW-6

7)Speed reducer 100, speed ratio: 100-A (JIEPAI, made in hangzhou)

8)Transition roller and sliding rollers altogether 7 pieces

9)Traction speed: 21 m/min

V:Electrical Part

1)converter and motor : 55KW (1 set), 5.5KW (1 set) ,3.7kw(1set),made in china

3)Solid state relay: Lanning (Sino-US joint venture)

4)Breaker and A.C. contactor: LS, made in S. Korea

5)Temperature controller, made in Shanghai

6)Aviation plug: made in Beijing

7)Other electrical components: CHINT, made in China

8)Thermal tube radiator seat: made in Yueqing, Zhejiang

water cooling tower

Guarantee and Installation

1. machine guarantee is for 1 year, electric components are for 6 months

2. within one year seller will supply wearing spare parts for free, after guarantee period, seller supply spare part at cost price

3. After machine deliver to buy’s factory, we will send 1 or 2 technical person for install machine, about 1or 2 weeks.

4. Buyer should supply round trip tickets, accommodation and each day 75 USD for each person, buyer should arrange translator for communication.

5. Technical support is for 24 hours online support.

Packing and delivery

Packing type: by plywood case with shrink film

Loading by 1*40feet container

Deliver time:about 50 working days

machine pictures

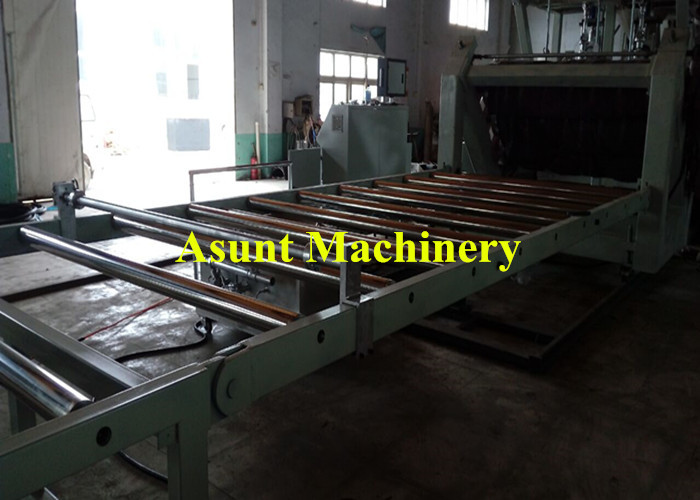

plastic sheet extruder machine

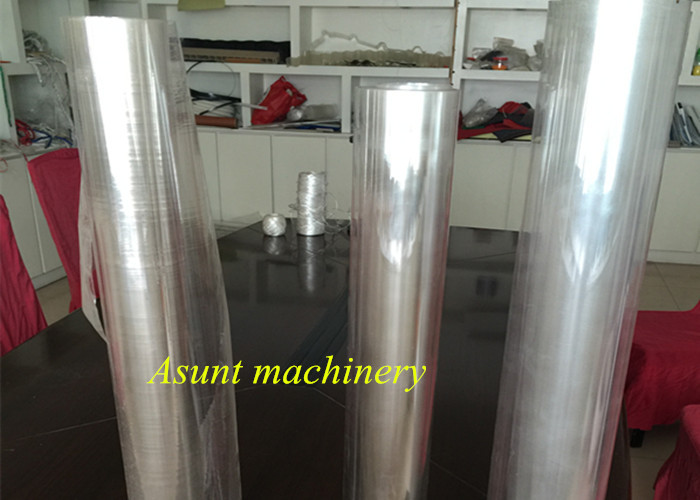

sheet production line
