800-1000Mm PP PE HIPS PET Sheet Making Machine PLC control Single layer
It adopts co extrusion technology to produce multi-layer co-extruded PET sheet,such as APET/PETG, PETG/APET/PETG, APET/RPET/APET
SPECIFICATION OF POLYESTER SHEET EXTRUSION LINE
| Raw material | APET,0.65 to 0.86dL/g (IV) |
| Final product & Output capacity | APET sheet/ 100-1000kg/h |
| Machine color | Standard color: Blue and Yellow |
| Description of final product | 1. Thickness: 0.25mm -1.0mm 2. Tolerance: 0.15mm ± 0.01mm; 1.2mm ± 0.03mm 3. Width: 500-1800mm 4. Layers: Single/Multiple layer 5. Winding: the two ends be sharp in ± 1mm |
II:MAIN PART OF SHEET EXTRUDER MACHINE
1)gearbox model: hardface model 250 ,speed rato:14:1
(made in china xiaoshan)
2) Screw diameter: 100mm,L/D ration 32:1(zhoushan)
3)Screw rotating speed: 0—90rpm
4)Screw material: 38CrMOALA
5)Screw heat treatment Nitriding hardness≥HV85,depth:0.5—0.7mm
6)Barrel heat treatment Nitriding hardness≥HV950,
depth: 0.5—0.7mm
7) Main motor power: 55kw(made in china)
8) screw heating power:6area x7kw/area=42kw
9)Tee joint heating and net change device heating power is :2area x3power/area=6kw
10) T-die Runner: clothes-hanger pattern
11)t-die width :800mm,heating power=15kw( 5area x3 kw/area=15kw)
12)hydraulic net change device ,hydraulic station motor:2.2kw
III :THREE ROLLER PART
1)three roller size :350x770mm(made in china )
2) Three roller material: NO.45
seamless steel tube, inner surface of roller have water circulation system (made in china)
3)Three roller motor:5.5kw
4)Three roller reduction box:wpa-120 speed ratio :120-A
4)Three roller model :45degree arrange(the same as above picture)
5) Three rollers bounce: ≤0.011mm
6) Three rollers surface roughness≤Ra 0.025
7) Three rollers transmission: one motor control three roller simultaneous transmission
8) Three rollers linear speed: 20 m/min
IV: (Traction) part
1)Rubber roller: 180×770mm (place of origin)
2)Traction roller: 180×770mm (made in our factory)
3)rewinding sheet roller: 2 pieces (industry standard)
4)Lateral sheet rewinding device (two sides): 1 set
5)Cutter: 1 group
6)Motor: 3KW-6
7)Speed reducer 100, speed ratio: 100-A (JIEPAI, made in hangzhou)
8)Transition roller and sliding rollers altogether 7 pieces
9)Traction speed: 21 m/min
V:Electrical Part
1)converter and motor : 55KW (1 set), 5.5KW (1 set) ,3.7kw(1set),made in china
3)Solid state relay: Lanning (Sino-US joint venture)
4)Breaker and A.C. contactor: LS, made in S. Korea
5)Temperature controller, made in Shanghai
6)Aviation plug: made in Beijing
7)Other electrical components: CHINT, made in China
8)Thermal tube radiator seat: made in Yueqing, Zhejiang
Application: PET/PP/PS/PLA sheet for packages
| Model | Multi Layer | Single Layer | Highly-efficient |
| Extruder Model | WT120/65-1000 | WT120-1000 | WT150-15000 |
| Thickness of product | 0.2-1.5mm | 0.15-1.5mm | 0.15-1.5mm |
| Main motor power | 110kw/45kw | 110kw | 160kw |
| Max. extrusion capacity | 500kgs/h | 450kgs/h | 800kgs/h |
Guarantee and Installation
1. machine guarantee is for 1 year, electric components are for 6 months
2. within one year seller will supply wearing spare parts for free, after guarantee period, seller supply spare part at cost price
3. After machine deliver to buy’s factory, we will send 1 or 2 technical person for install machine, about 1or 2 weeks.
4. Buyer should supply round trip tickets, accommodation and each day 75 USD for each person, buyer should arrange translator for communication.
5. Technical support is for 24 hours online support.
Packing and delivery
Packing type: by plywood case with shrink film
Loading by 1*40feet container
Deliver time:about 50 working days

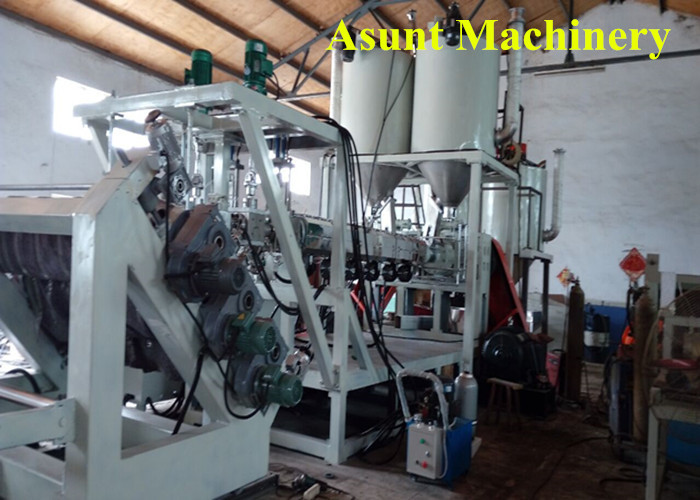

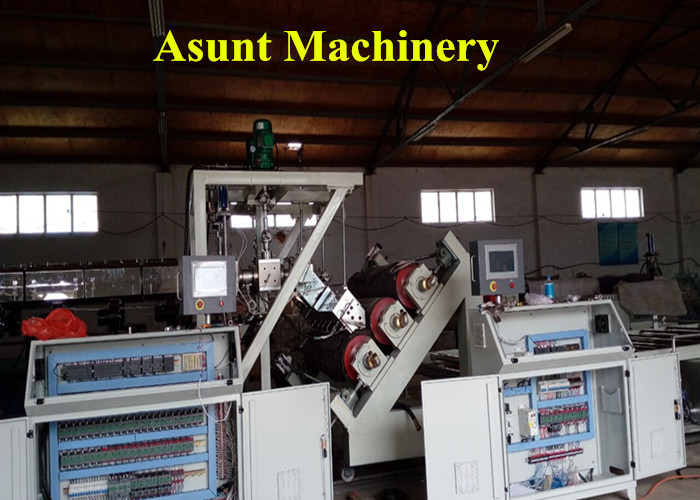

machine pictures
