high performace PET Clear corrugated sheet/sunny roofing sheet extrusion machine
Machine application

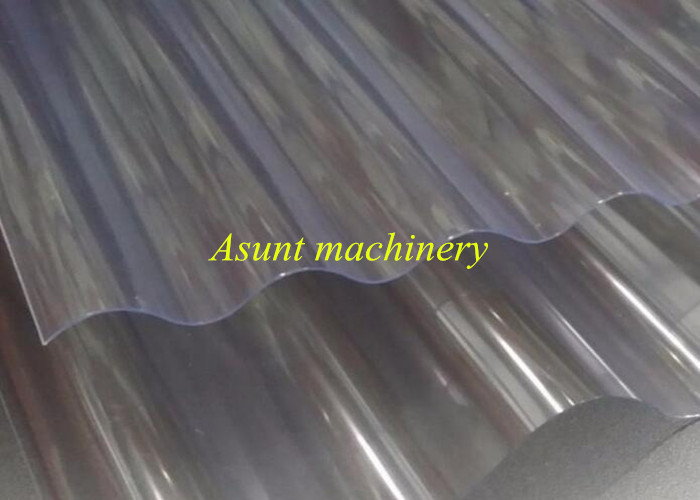

this machine is used for making PET corrugated sheet,
first making PET sheet, then forming to corrugated sheet.
machine device list
1. drying and dehumidify system
2. 90/30 single screw extruder
3. screen changer and metering pump
4. T-die
5. 3 roller calendar
6. cooling tray
7. edge cutting and waste recycle winder
8. haul-off and cutter
9. winder
10 unwinder
11 heating oven and forming machine,
12.haul-off machine
13 cutting machine
14. stacker
FEATURES OF PRODUCTS
1, Light Transmisson
The light transmission reaches 12%-82% depending upon colour and thickness.
2, Thermal Insulation
Proprietary hollow from contributes to reduce the energy consumption and therefore energy costs.
3, Fire Retardancy
According to GB8624-1997 the fire retardant classification of POLYGAL project sun sheet is B1.
4, Impactresistance
Its outstanding toughnes offers greater protection against breakage during transportation, installation and usage. The impact strength is 10-27 times as much as plexiglass.
5, UA-Protection
Attrbuting to the proprietary UV surfaces. Remain perfact mechanical andoptical properties after exposed to extreme weather for a long time.
6, Sound Insulation
The hollow from and polycarbonate resin offer significant advantage to the sound insulation.
7, Weather Ability
It have good weather ability can maintain excellent properties in a wide temperature range form -40* to 120*.
8, Easy installation
Easy installation can be cold bent.
Production applications:
1 Roofing light sheet and sunshade for office building ,etc
2 skylight,lighting for corridors ,balcony,passages and subway entries ,walkways.
3 Advertising lamp boxes ,sign board
4 Bank ATMS. Bullet resistabce material
5 Conservatories ,agriculturall greenhouse ,zoos ,botanical gradens.
6 industrial roofing and glazing.
7 Swimming pools roofing/cover/sheet.
8 Telephone booths ,street name plates.
9 Airplanes trains,ships ,vehicles.
product specification
| sheet width | 840-1050mm |
| Thickness(mm) | 0.8mm-3.0mm |
| Width(mm) | 840mm 820mm 760mm 930mm 1050mm |
| Length(mm) | can produce according to customer request |
| Color | Clear Opal Green Blue Bronze Lake blue Red Yellow |
| Production Line | Two line for PET corrugated sheet and one line for PET solid sheet |
| Raw materials | virgin PET material |
|
|

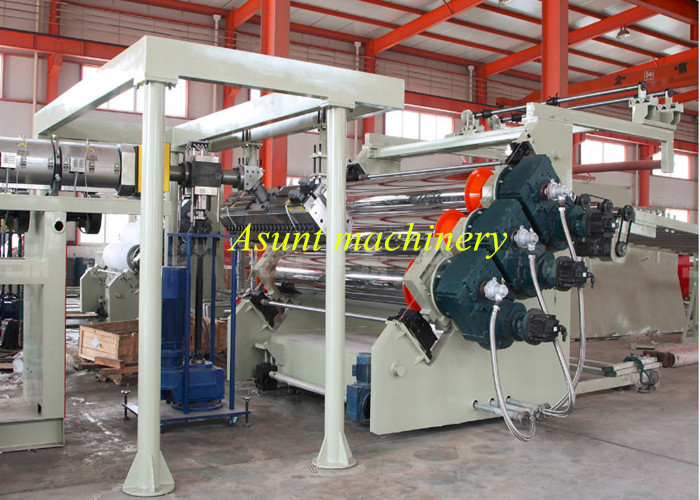

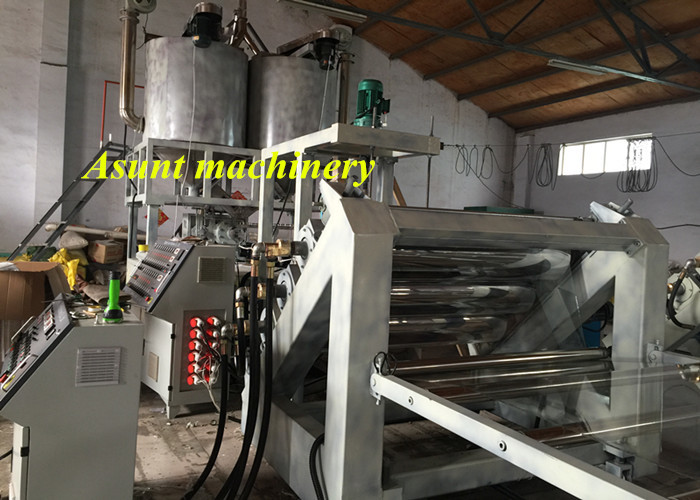

high performace PET Clear corrugated sheet/sunny roofing sheet extrusion machine Images
|
